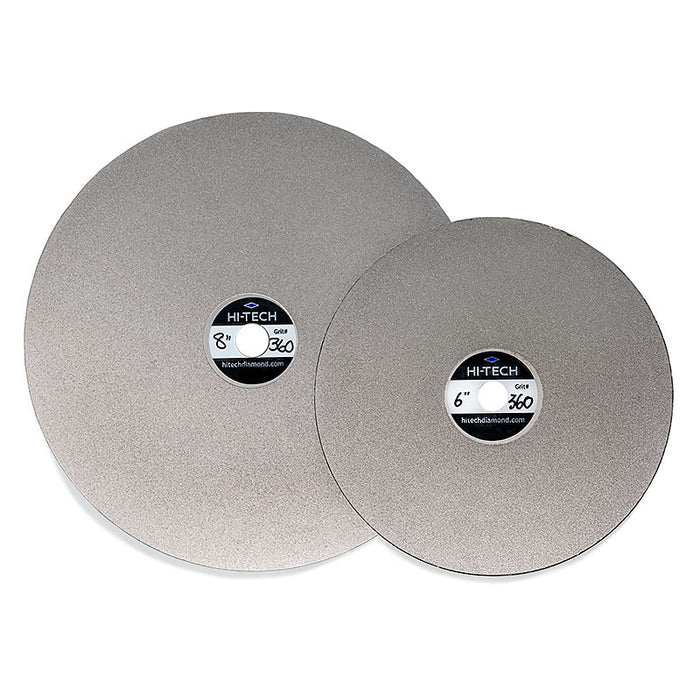

Hi-Tech Diamond 6" Electroplated Diamond Laps

Hi-Tech Diamond electroplated diamond laps provide a flat grinding surface for both rough and fine grinding on stones and glass. Top-grade diamond powder is nickel electroplated uniformly onto a 1mm-thick steel disc. This diamond disc is then professionally bound to an acrylic backing plate, making it ready for use. Because the diamond disc is made of steel, these laps have a long lifespan and are well-suited for more heavy-duty grinding. These electroplated diamond laps are used on our All-U-Need and Slant Cabber lap machines, and can be used on all other lap machines that accept 1/2" arbors.

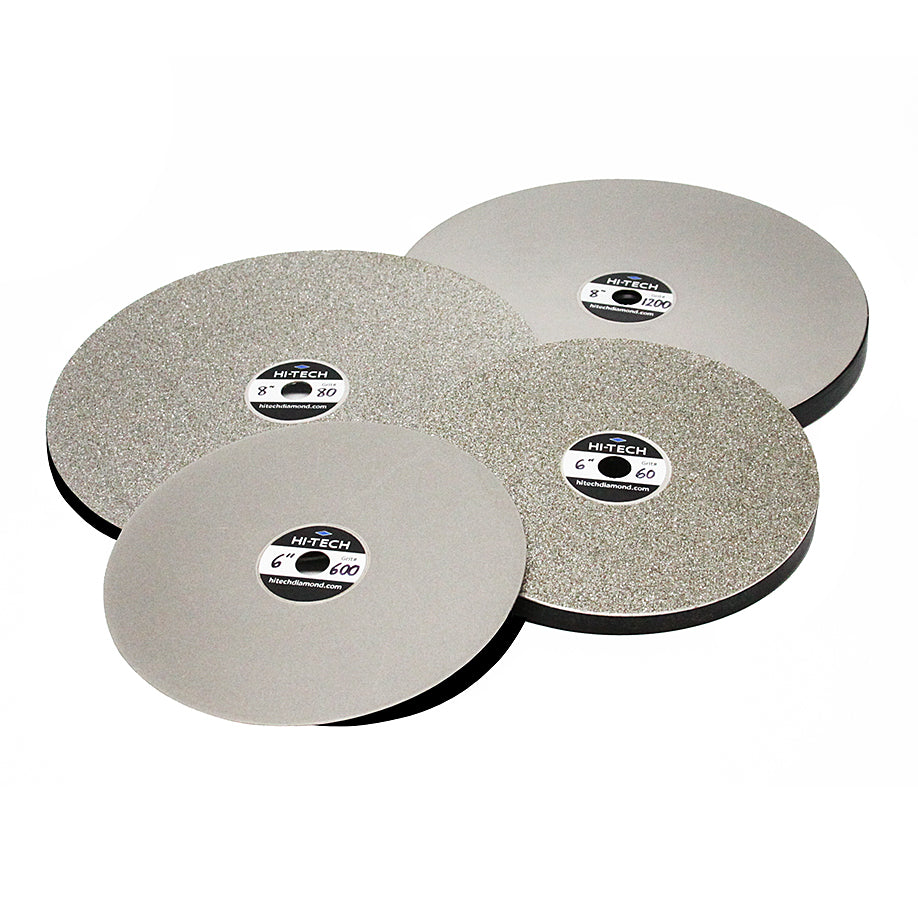

Both 6" and 8" diameter laps are available, in a large variety of different diamond grits. All laps have 1/2" arbor holes.

Please Note: Max RPM is 4,000.

Compatible with CabKing

CabKing diamond laps are used for both rough and fine grinding on stones and glass. They are also useful for putting flats on larger cabs. These electroplated diamond discs come pre-attached to an acrylic backing plate and are available in 6″ and 8″ diameter sizes with a large variety of different grits to choose from.

Our diamond laps are manufactured using the highest quality diamonds to provide you a longer grinding life and clean, faster cutting. They are nickel electroplated using commercial grade diamonds uniformly onto a 1mm thick steel plate. That steel plate is then bonded to a precision ground, 3/8" thick acrylic backing plate. These diamond laps have a long life span because they are made of steel, resulting in the highest quality lap available on the market.

We offer a variety of different grits, ranging from 60 to 3,000. Use these lapidary diamond laps on the left shaft lap adapter on both the CabKing 6" cabbing machine and CabKing 8" cabbing machine to grind flats on stones and glass or to put a flat back on larger cabochon pieces. You can also use them on other cabbing units and lap machines that accept a 1/2" arbor.

All laps have 1/2" arbor holes and come pre-attached to an acrylic backing plate. No additional assembly is required.
