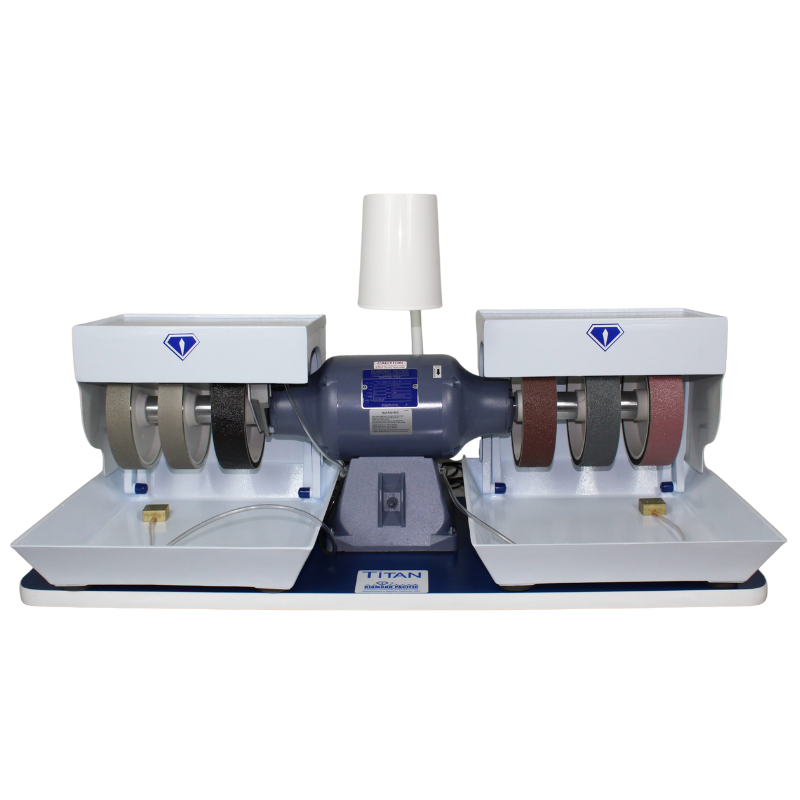

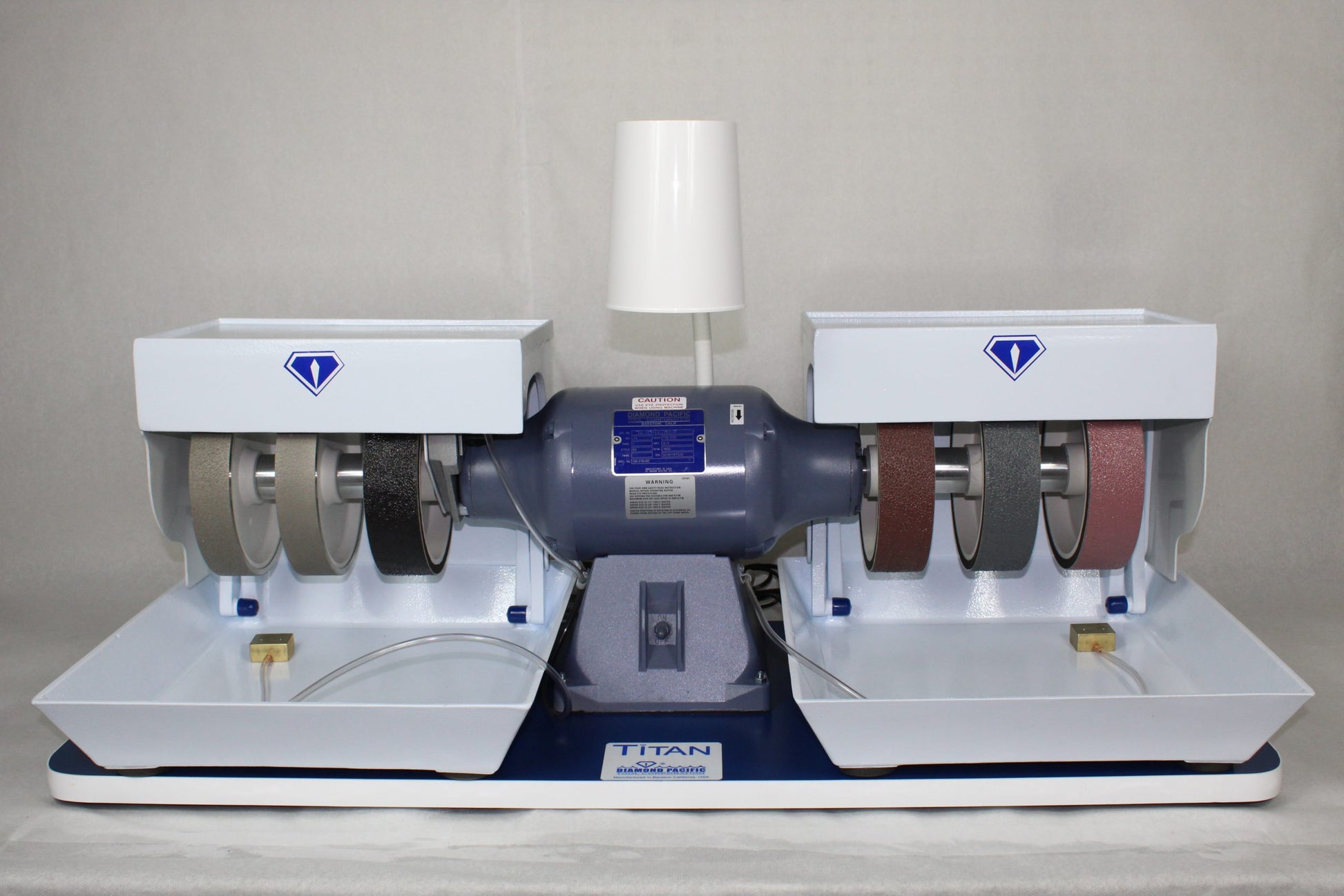

The Titan 8" Cabbing Machine "Gem Maker" - 115V | 100-T-100

The Titan can take care of your grinding and polishing needs and do it fast and efficiently. It’s the choice of dedicated hobbyists and professional cutters.

Start with it’s all-diamond grinding and polishing wheels. They are mounted together on the machine, allowing you to proceed from start to finish without wasting time changing wheels. The grit sequence is the best all-around choice for shaping and polishing most stones, and they’ll make short work of the task. If you need special grits for your particular job, the wheels are easy to change. On the right hand side use Lapcraft “No Hole” diamond discs, Nova discs, our Magnetic Novas, or similar ac-cessories having a 1/4”-20 thread bolt for attachment. A special geyser for use with the flat laps is included with the Titan.

TITAN IS RUGGED. It features a big 3⁄4 HP, 1800 RPM, 115/230V industrially rated motor that is sealed against grit contamination and never needs oiling. (Export motor is 1500 RPM, 230V/50Hz) It has a 1" diameter shaft that is even heavier through the bearings which have a 30 mm bore.

The Titan Includes

• 3 ⁄ 4  HP, 115/230V industrially rated motor on 16" x 42" laminated baseboard
• Double pump
• Spra-Mist coolant system
• Cast aluminum quick-change hoods and pans
• One 80 grit and one 220 grit 7 5⁄8" x 1 1⁄2" Galaxy metal-bond diamond grinding wheel
• Four 7 5⁄8" x 2" Nova resin-bond diamond sanding and polishing wheels (one each 280, 600, 1200 and 3,000 grit)
• One 24" flex stem lamp
• One 5 1⁄2" 14,000 grit Diamond Nova Disc
• Special disc geyser for laps
• Cab rest
• Set of two splash guards
• Sample bottle Water Aid
• A manual
• SAFETY GOGGLES WHICH MUST BE WORN WHEN OPERATING THIS MACHINE.
• Note: Titan comes with two mounting buttons to allow you to move lamp from right to left or add a second lamp or magnifier
